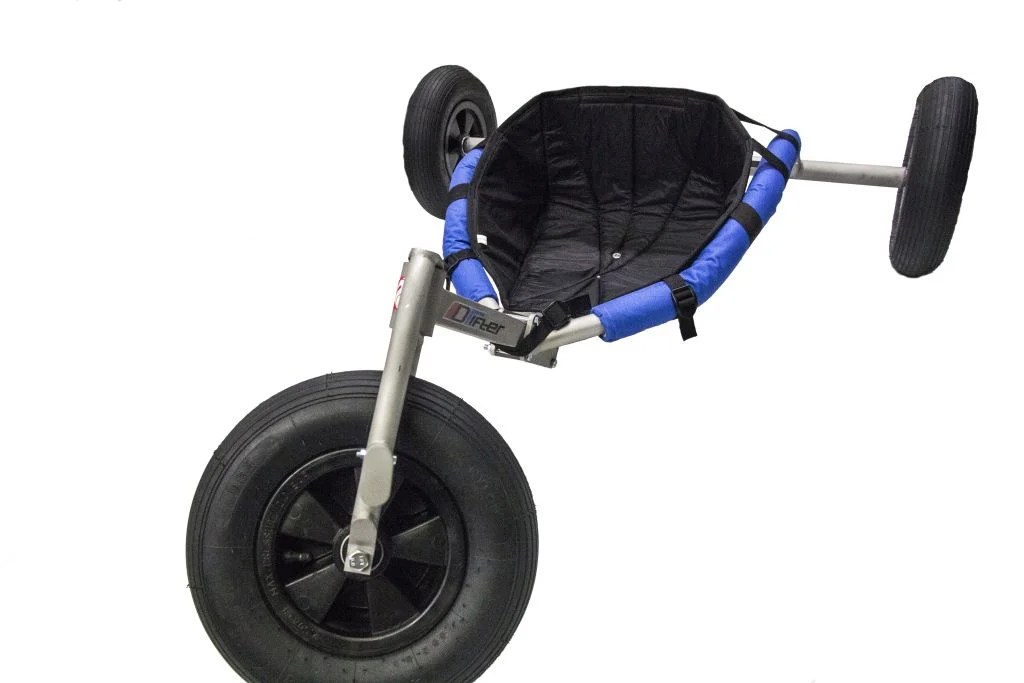

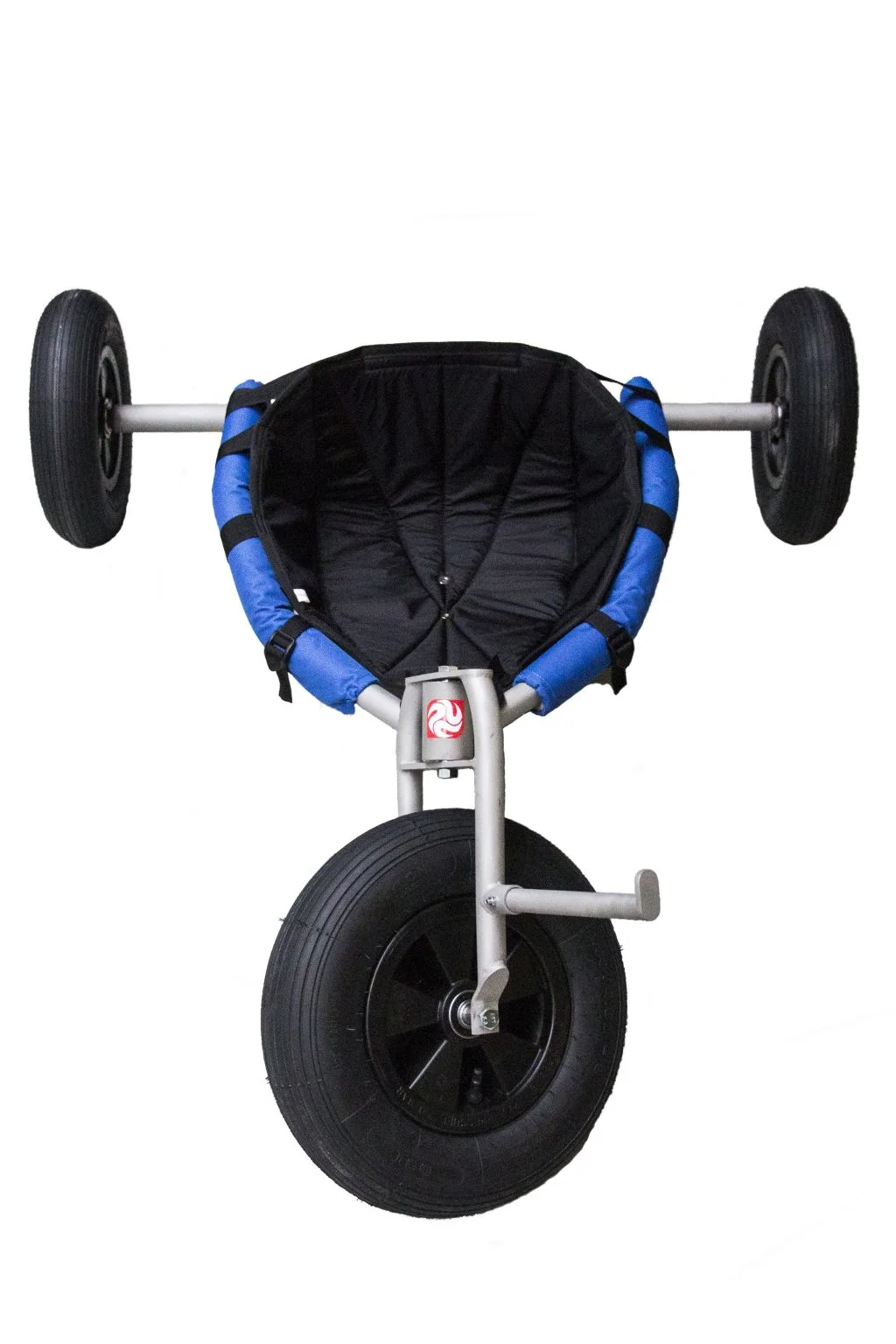

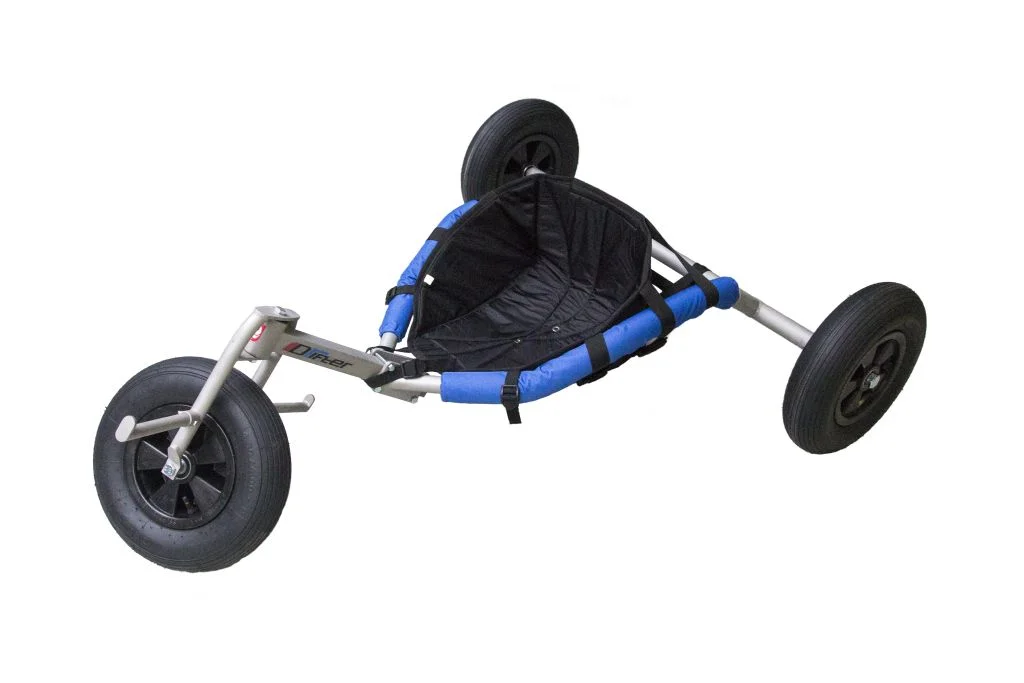

Peter Lynn Drifter Kite Buggy

The Peter Lynn Drifter replaces the famous XR+ design and remains a true ‘all purpose’ buggy. It is made out of Stainless steel. The strong connection points make the buggy very durable and its fully reinforced and padded seat guarantee many hours of care free and comfortable riding.


Characteristics & features

• Balanced center of gravity for doing tricks like 360’s with ease.

• Strong stainless steel frame with reinforced connections

• Galvanized steel nuts & bolts.

• Specially curved sideframes to ensure good body grip

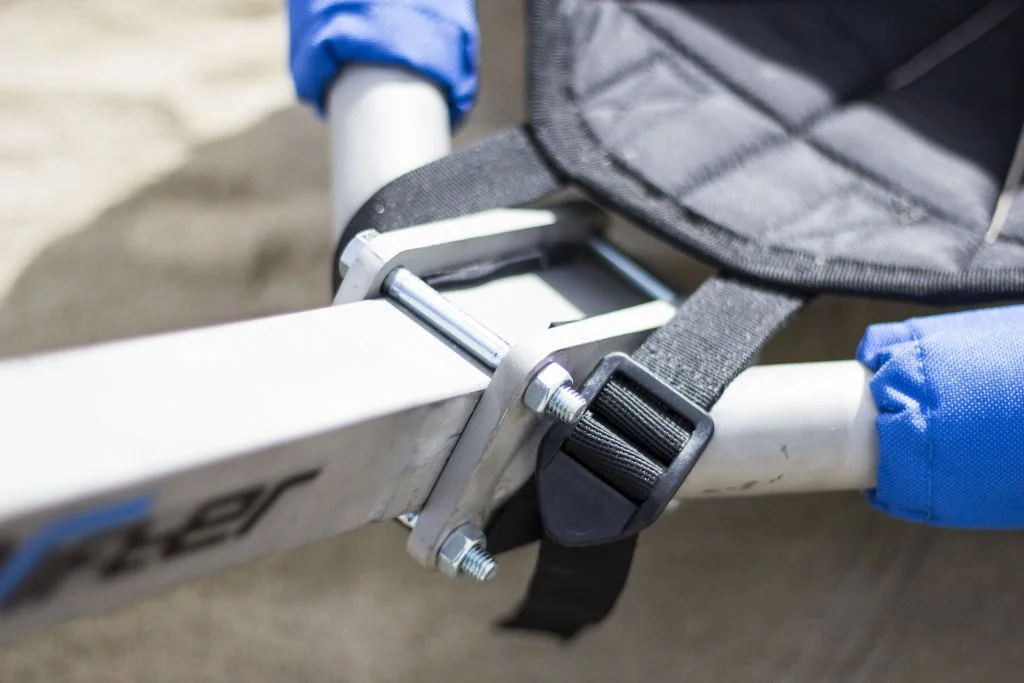

• 4-bolt adjustable downtube

• 42mm diameter backaxle with 20mm wheel bolts ensuring maximum strength

• Luxury padded seat for a comfortable ride

• 35mm sideframes for extra rigidity and strength

• Made in Europe!

Quick Overview

• Frame Material - Stainless steel

• Seat type - Luxury padded reinforced seat

• Sideframe padding - Padding with nylon sideframe covers

• Standard wheel 4.8/4.00 - 8 (16″)


• Extra wide wheel 16/6.50 - 8 (16")


• No of frame parts - 7

• Approx. assembly time 10 min


Buggy Dimensions

• Wheel base - Variable

• Track- 111 cm

• Front fork width - 19 cm

• Front fork tube diameter - 28 mm

• Footpeg diameter - 22 mm

• Footpeg length - 21 cm

• Footpeg ground clearance - 25 cm

• Downtube Length - 44 cm

• Downtube thickness - 40 mm

• Sideframe length - 89 cm

• Sideframe diameter - 34 mm

• Distance between side frames - 52 cm

• Seat length - 60 cm

• Seat height - 22 cm

• Seat ground clearance - Variable

• Back axle width - 102 cm

• Back axle diameter - 42 mm


Bolts, nuts, spacers & bearings used

• Front axle bolt - M12 x 140

• Front axle nut - M12

• Front axle spacers - 21mm

• Front wheel bearings - 20 x48

• Front wheel spacer - 20 x 47

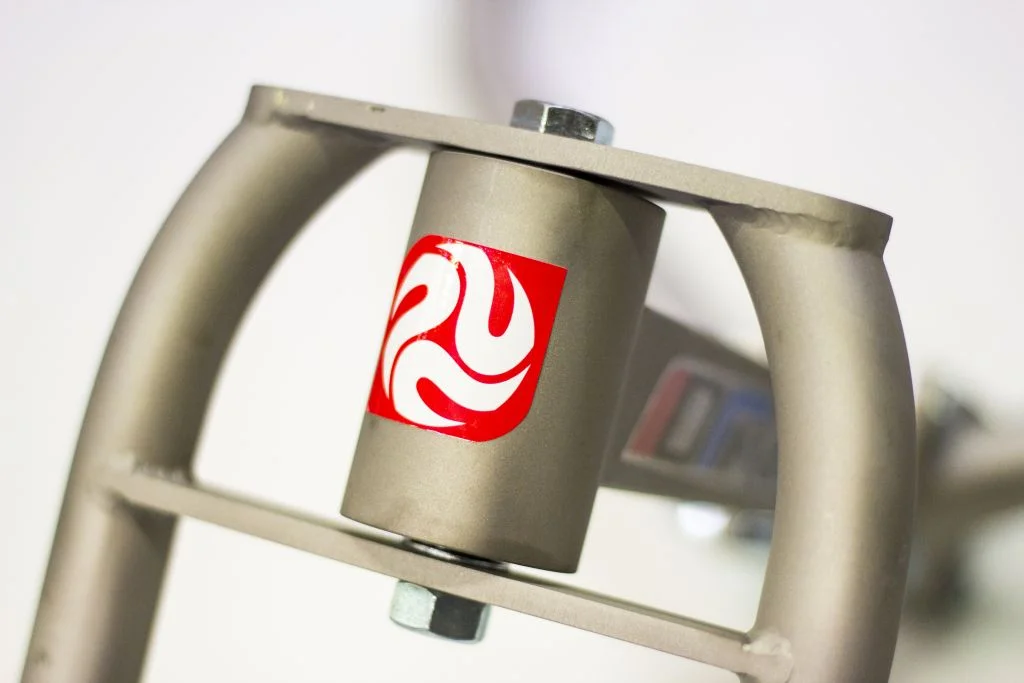

• Headset bolt - M12 x 100

• Headset nut - M12

• Headset spacer - 50mm

• Headset bearings - 20 x 48

• Downtube bolt - M8 x 70

• Downtube nut - M8

• Rear wheel bolts - M20 x 100

• Rear wheel bearings - 20 x 48

• Rear wheel spacer - 20 x 47
